Color Coated Steel Sheets Manufacturer in Lucknow Uttar Pradesh

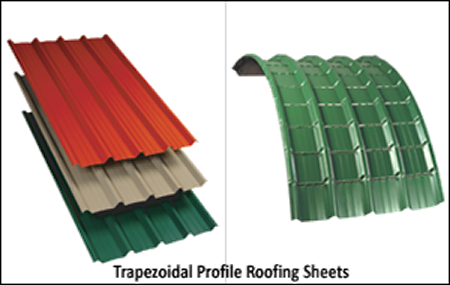

Trapezoidal Profile Roofing Sheets
Our color metal roofing is the most versatile roofing product in the market and offers you both elegance and flexible design for any building need.

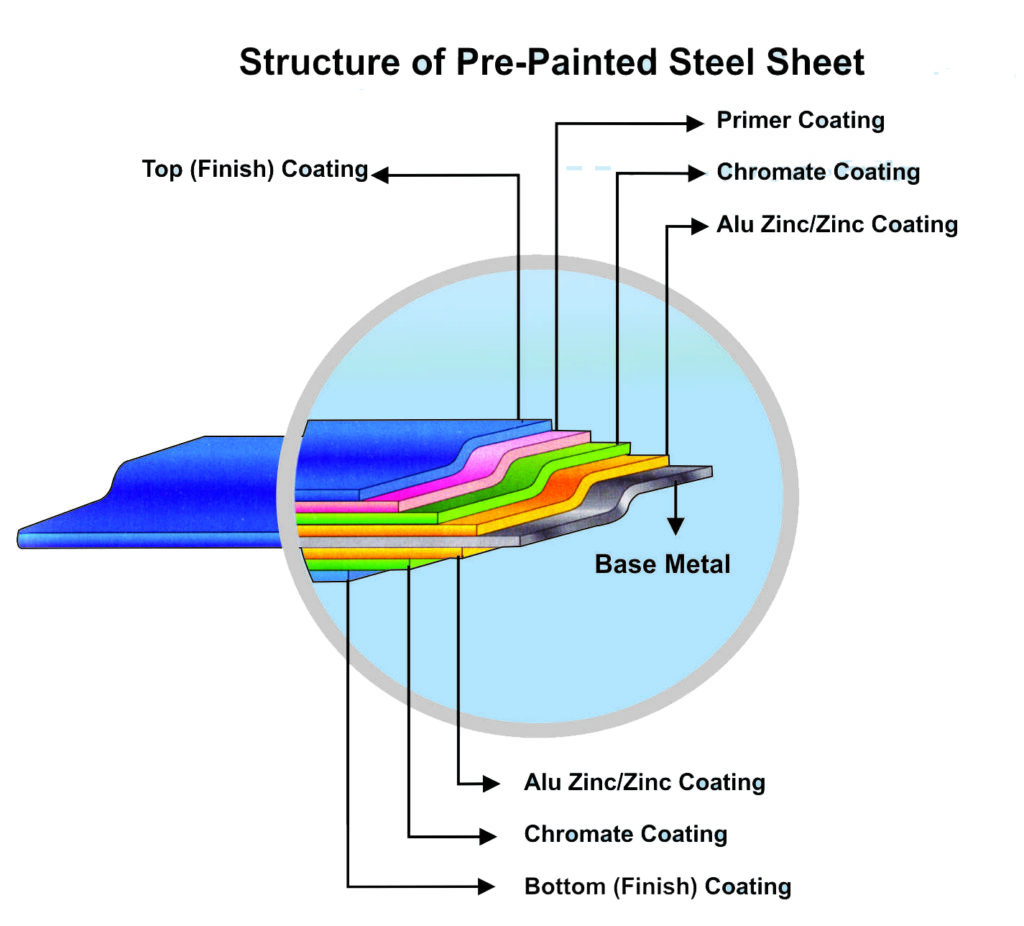

Material Specification
| Pre-Painted Galvanized Steel Sheets (Gl-Base) | |
| Zinc coating | Z 120 GSM |
| Primer service coat | 5 microns epoxy / PU on both sides |
| Paint coating | Regular Modified Polyester(RMP) (Optional -Silicon Modified Polyester & PVF 2) |
| Painting thickness (top) | 18-20 microns |
| Painting thickness (bottom) | 5-7 microns |
| Surface paint reflection | Semi Gloss / Matt finish |
| Conforms to | ASTM A653, A755, JIS G3302, G3312, IS277, 513, 14246, AS1397 |
| Non-color Alu-Zinc Steel Sheets (Bare Galvalume*) | |
| (55% Aluminium 45% Zinc Alloy ) | |
| Alu – Zinc Coating | AZ 150 (Optimal AZ70) GSM |
| Conforms to | ASTM A792, JIS G 3321, AS 1397 |
| Yield Strength | 300 – 550 MPa |
| Pre-Painted Alu-Zinc Steel Sheets (Galvalume*) | |
| (55% Aluminium 45% Zinc Alloy ) | |
| Alu – Zinc Coating | AZ 150 (Optimal AZ70) GSM |
| Primer service coat | 5 microns epoxy / PU on both sides |
| Paint coating | Regular Modified Polyester(RMP) (Optional -Silicon Modified Polyester& PVF 2) |
| Painting thickness (top) | 18-20 microns |
| Painting thickness (bottom) | 5-7 microns |
| Surface paint reflection | Semi Gloss / Matt finish |
| Conforms to | ASTM A792, A755, JIS G3321, G3322, AS1397 |
| Yield Strength | 300 – 550 MPa |
Oriental Roofing
- Anti-capillary groove ensures leak-proof roof
- Minimum yield strength of 550 Mpa ensures required strength for roofing application.
- Accurate thickness, width & length helps to give the perfect fit for any roof.
- Wider valley ensures higher water discharge in case of heavy rains

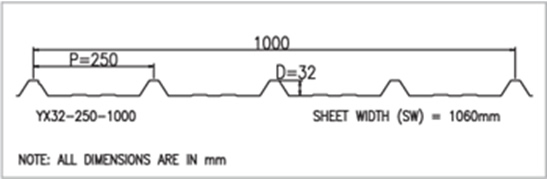

| Material Dimension Technical Specification | ||||
| Total Coating Thickness (TCT) 0.30mm, 0.35mm, 0.40mm, 0.45mm, 0.47mm, 0.50mm, 0.55mm,0.60mm, 0.65mm | ||||
| Profile | Effective Width (EW) | Pitch (P) +/- 5mm | Depth (D) +/- 2 mm | Sheet Width (SW) |
| Trapezoidal Roofing | 1000mm | 250mm | 32mm | 1060mm |
