Insulated PUF Panel Roof & Wall system.
Creative Panel systems are the answer to the Architectural problem
of providing high insulation value to the roofing and wall in air
conditioning and industrial/commercial building. It provides a one-step
solution in the form of a pre-fabricated sandwich polyurethane Panel which
ensure exceptional strength since it is a composite system comprising of
Profile on one side, linear tray on the inner face and injected CFC free,
closed cell high density polyurethane in between
Application of Insulated roofing & wall cladding
Panel system finds wide applications in the following areas:
- Cold store
- Post Harvest Management
- Clean Room
- CA Rooms
- Ripening Rooms
- Telecom Shelter

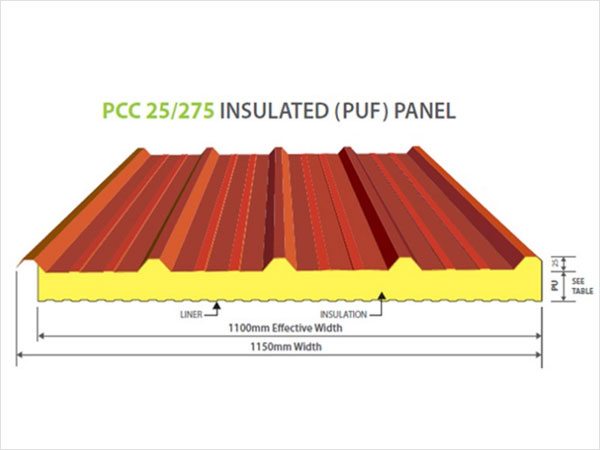

Insulated Panel Roof System
Self-supporting metal panel, insulated with polyurethane, for pitched roofs with a minimum slope of 7%.
Table of safe spans
Values guaranteed with external face in steel, 0.5 mm thick, and internal face in steel, 0.4 mm thick or with both faces in aluminium 0,6 mm thick with external face in aluminium, 0.6 mm thick, and internal face in steel, 0.5 mm thick.

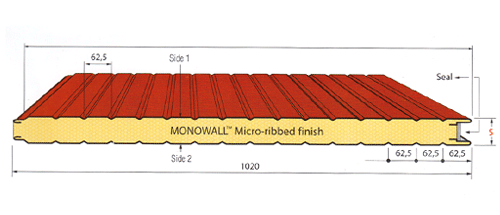

Insulated Wall system
Self-supporting metal panels insulated with PUR for use in industrial and commercial buildings, refrigerated rooms with positive temperature, and partitions in general.
